Videojet 3640 – High-Performance CO2 Laser Printer
Laser Marking Systems
CO2 Laser Printers for High-Speed Marking Applications
The Videojet 3640 is a 60-Watt CO2 laser printer specifically engineered to meet the demands of high-speed and high-volume applications in industries such as pharmaceuticals, tobacco, and beverages. This compact, high-performance CO2 laser printer is designed to handle complex codes at rapid speeds, offering the industry’s widest mark field for maximum efficiency.
Contact us for New Equipment Sales

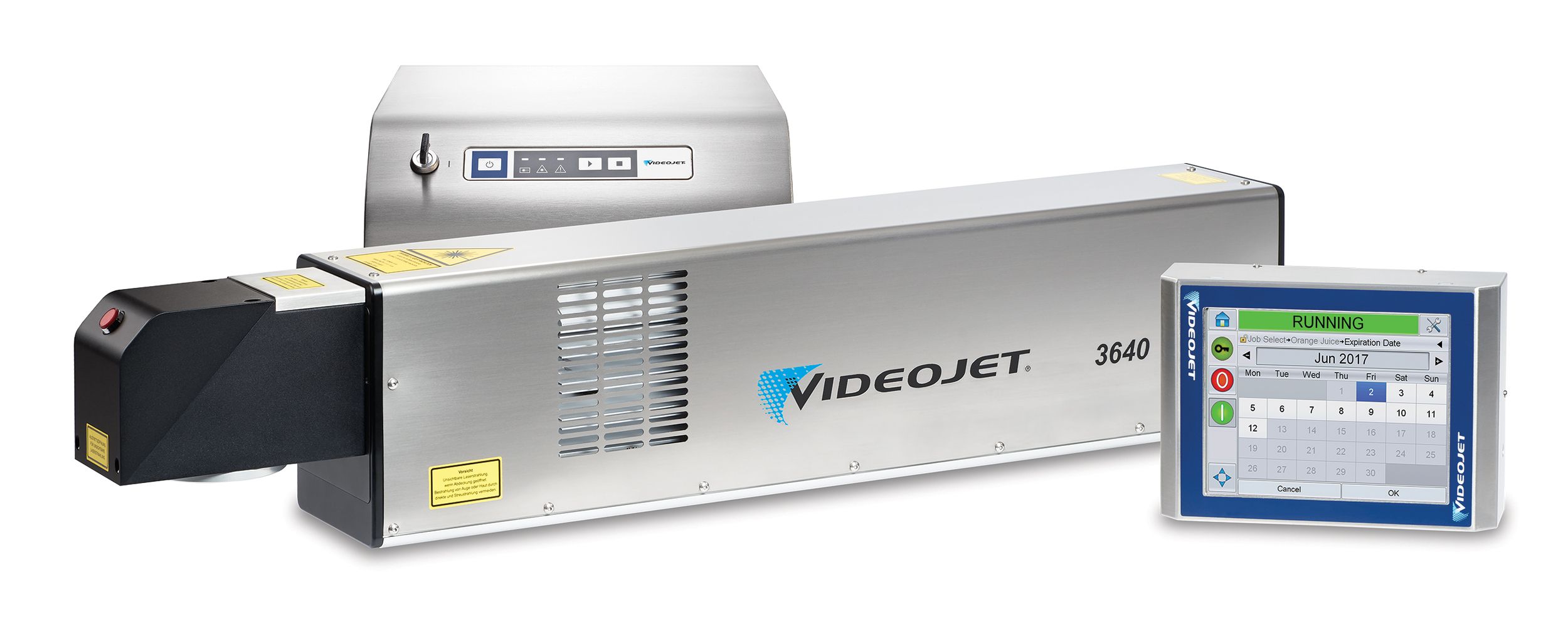

Videojet 3640
Specs
| Value | |
| Laser Tube | CO2 |
| Maximum Power | 60W |
| Laser Cooling | Air cooled |
| Maximum Print Speed | 2100 characters/sec |
| Maximum Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, IP65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS |
| Umbilical | Detachable , 3 lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
Benefits
Uptime Advantage helps keep productivity up and costs down:
- Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines
- Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
- Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot potential issues
Industrial design engineered for high performance:
- Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down
- Available with an ingress protection level of IP65
- Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line
Flexibility and simple usability comes as standard:
- Compact, highest-powered laser marking system in the industry
- Easily integrate the laser marking system even into production lines that have space limitations
- Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost
“Improved line flexibility allowed for rapid implementation of changes to carton labeling. Eliminating labels achieved significant cost savings.”
Mike Wilcox – Senior Project Manager, Ascensia Diabetes (case study)
“The Videojet lasers have not had a single glitch since they were installed and are working well every day!”
Mr. Jose Luis Munoz – Manager, Avicola Velasco (case study)
“From an operator’s point of view, the Videojet lasers are far easier to work with.”
Barry Murray – Operator, Diageo (case study)
Applications
Resources
Documents
Spec Sheet : 3640
Print Sample Guide
Laser Product Range Brochure
Videos
Videojet 3640 CO2 Laser marking system
Related Products
Videojet 3140 CO2 Laser | Videojet 3350 CO2 Laser | Videojet 3640 CO2 Laser | |
| Description | Offers all of the performance features found in higher wattage Videojet lasers, but with a power source better matched for moderate line speed applications. | With virtually no font, code or graphic restrictions and line speeds up to 900 m/min., the 3350 is an ideal solution for marking complex codes at high speeds in food, beverage, cosmetics, pharmaceutical and extrusion industries. | With print speeds of up to 2,100 characters per second and 150,000 products per hour, the 3640 is an ideal solution to help address highest speed and volume applications in the pharmaceutical, tobacco and beverage industries. |
| Shared specs | – Commonly used for marking non-metallic materials such as glass, paper, plastics, rubber, and wood – Air cooled – IP54 laser head, IP65 supply unit | ||
| Max line speed | 900 m/min (2,940 ft/min) | ||
| Max power | 10-watt | 30-watt | 60-watt |
| Wavelength options | 10.6 μm, 9.3 μm | 10.6 μm, 10.2 μm, 9.3 μm | |
| Max mark window | 485 x 351 mm (19.09 x 13.81 in) | 601 x 440 mm (23.66 x 17.32 in) | |
| Certifications/approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA | CE, TÜV/NRTL, FCC, KC, BIS Compliance (no certification required): ROHS, CDRH/FDA | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
